BME-7BBL
Brewman
8438400000
| Availability: | |
|---|---|
|
| |
Product Description
7 bbl 7 Barrel Jacketed Brite Tank for Sale
7 barrel brite tank Configuration:
Configuration | |
Pressure | Design pressure 45 psi (3bar) |
Working pressure 30psi (2bar) | |
Interior shell | 304 stainless steel, thickness 3mm |
Exterior shell | Fully welded,304 stainless steel, thickness 2mm |
Interior and exterior finish | Acid washing to 0.6um |
Dish head and cone bottom | |
Carbonation stone and level | |
20% headspace, unless a different volume is requested | |
Top manway or side manway door | |
Dual zone in sidewall and cone dimple cooling jacket with glycol inlet and outlet | |
Polyurethane insulation thickness 80mm for cooling jacket on side and bottom | |
Non welding CIP arm and rotating 360 degree reach spray ball | |
Solenoid relief valve, pressure relief valve (safe valve) are standard | |
Pressure gauge | |
Temperature sensor well | |
Sanitary sample valve and port | |
All clamps and gaskets to attach all accessories | |
Tank complete with piping, fittings, sanitary valves and all parts. | |
4 stainless steel legs with leveling footpads | |
special request | Beer rotating arm |
Ladder hooks is available | |
Dry hop ports and/or hop bag hooks | |
7 bbl brite tank Introduction:
7 bbl jacketed brite tank are used for the storage of the beer prior to being served or packaged.
Beer serving tank are often also called brite tanks, tax determination tanks or clear beer tanks (=CBTs),
bright beer tanks (=BBTs) or maturation or conditioning tanks.
These tanks are used for the storage of the beer prior to being served or packaged.
Depending on their application the beer serving tanks can be glycol jacketed or can be located in a cold room.
For brewpubs serving is often done by pumping or pressurizing the beer toward the serving location.
For brewpubs serving is often done by pumping or pressurizing the beer toward the serving location.

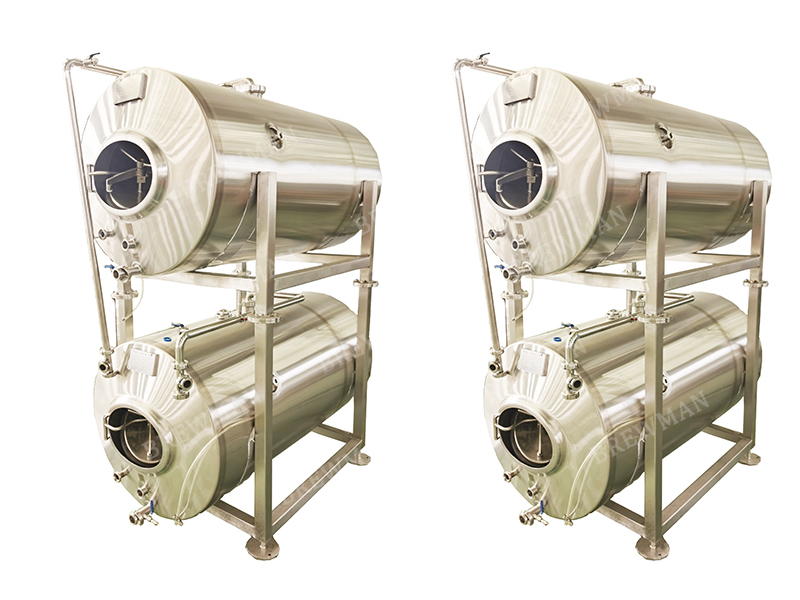

According to the celiing and sapce limitation, the brite beer tank can have vertical brite beer tank,
horizontal brite beer tank, stackable vertical bright beer tank(two tanks stack in vertical).
stacabale horizontal brite beer tank( two sets horizontal brite beer tank stack together)
200 gallon brite tank Shipping:
.Plastic film wrapped and iron frame fixing for FCL(full container loading)
20’GP, 20’HQ, 40’GP, 40’HQ,45’GP,45’HQ,
.Wooden case package for LCL(less container loading) and flat shipping
