Product Description

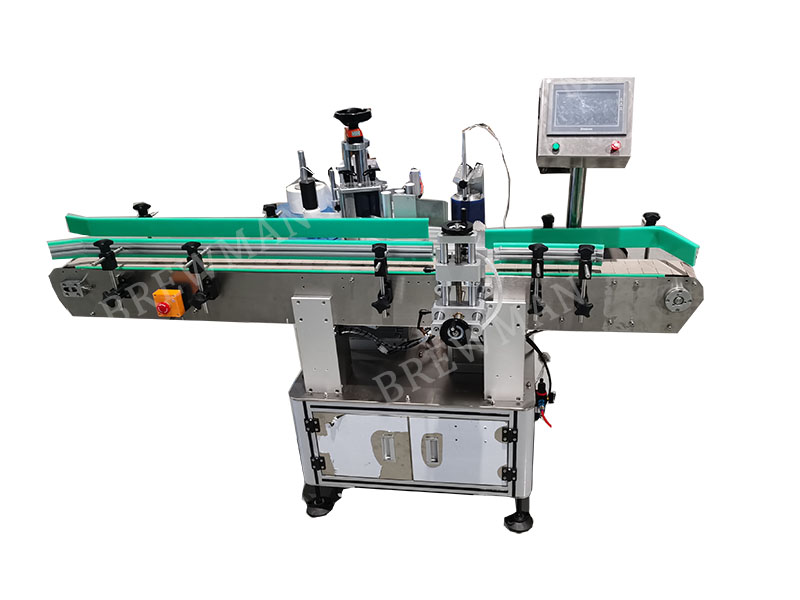

Automatic beer labeling machine introduction:
Labeling machine is professional and automatic type labeling machine.
One piece or double pieces stick , front and back label can be flexible adjustment as per request.
It also can used to taper shape bottles for setting up position fixed mechanism and labeling at a fixed place.
It can work separately or work connect with assembly line or filling line.
Configuration and Specification for automatic labeling machine:
Electrical equipment | Quantity | Brand/remark |
Stepper motor | 2sets | YAKO/Leadshine |
Step actuator | 2sets | YAKO/Leadshine |
Conveyor motor | 1set | OPG/Wanshisin |
Conveyor motor speed regulator | 1set | OPG/Wanshisin |
Label electric eye | 1set | Leuze/Data Sensor |
EUT electric eye | 1set | Panasonic/ Riko |
Positional electric eye | 1set | Panasonic |
PLC programable controller | 1set | Panasonic |
Labeling accurate | ±1mm | |
Product scope | Diameter φ25mm~φ100mm,height25mm~300mm | |
Label scope | Width 20~180mm,Length 20~285mm | |
Voltage | 220V | |
Out size | L*W*H:1950mm×1200mm×1530mm |
