Brewman beer fermentation tanks can be individually temperature controlled through glycol jackets and are mostly equipped with accessories such as pressure gauge and relief valves(PRVR), CIP cleaning arm, Spunding valves, Carbonation stone, sanitary sample valve, manhole, Levels etc.
BME-100L
Brewman
8419899090
| Availability: | |
|---|---|
|
| |
Product Description

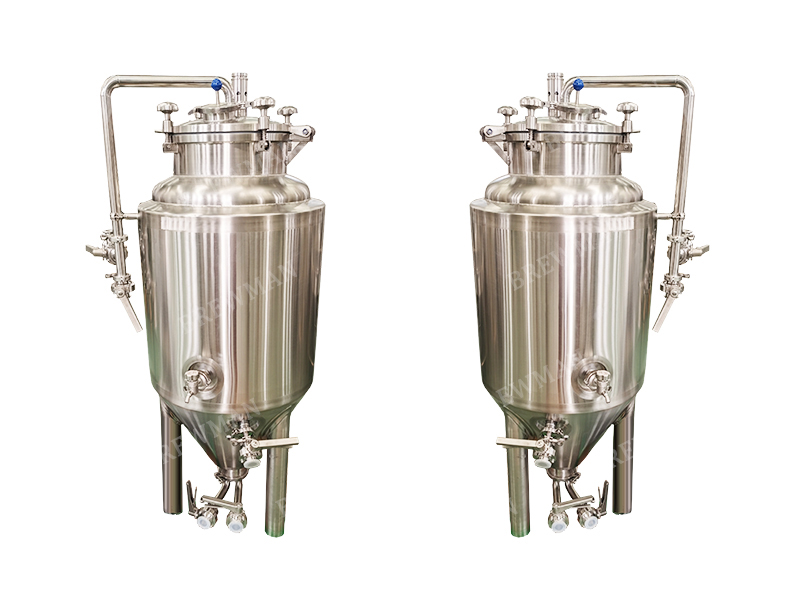

Small Conical Stainless Steel Fermenter for Sale
60l fermenter Introduction:
Fermentation vessels(FV's) are also called fermenters. Some brewers also call it CCT's (Cylindrical Conical Tanks)
or primary fermentor. And many breweries use fermentation tanks or unitanks as they are used
both for fermenting and lagering.
Fermenting is the process during which the yeast transforms the wort into beer.
Lagerings takes place after fermenting and is the time given to the beer to stabilize and age after fermenting.
Brewman beer fermentation tanks can be individually temperature controlled through glycol jackets.
And they are mostly equipped with accessories such as pressure gauge and relief valves(PRVR), CIP cleaning arm,
Spunding valves, Carbonation stone, sanitary sample valve, manhole, Levels etc.
50l conical fermenter Shipping:
.Plastic film wrapped and iron frame fixing for FCL(full container loading)
20’GP, 20’HQ, 40’GP, 40’HQ,45’GP,45’HQ,
.Wooden case package for LCL(less container loading) and flat shipping
60l conical fermenter Configuration:
Configuration | |
Pressure | Design pressure 45 psi (3bar) |
Working pressure 30psi (2bar) | |
Interior shell | 304 stainless steel, thickness 3mm |
Exterior shell | Fully welded,304 stainless steel, thickness 2mm |
Interior and exterior finish | Acid washing to 0.6um |
60 degree cone bottom, other angles can be specified during the design process | |
Beer rotating arm beer outlet, beer discharging port at the bottom | |
25% headspace, unless a different volume is requested | |
Top manway or side manway door | |
Dual zone in sidewall and cone dimple cooling jacket with glycol inlet and outlet | |
Polyurethane insulation thickness 80mm for cooling jacket on side and bottom | |
Non welding CIP arm and rotating 360 degree reach spray ball | |
Solenoid relief valve, pressure relief valve (saftyvalve) are standard | |
Pressure gauge | |
Temperature sensor well | |
Sanitary sample valve and port | |
All clamps and gaskets to attach all accessories | |
Tank complete with piping, fittings, sanitary valves and all parts. | |
4 stainless steel legs with leveling footpads | |
special request | Carbonation por, Spunding valves and level |
Ladder hooks is available | |
Dry hop ports and/or hop bag hooks in any fermenter of any size | |
