UK 1 Head Canning Line Machine For Drinks
This 1 head mobile canning machine is built for a customer in UK.
It is a drink company and Brewman is very lucky to have the chance to build this 1 head canning line.
Hope we can see their drinks products in China soon.
Please review this project with Brewman and share with us your ideas and suggestions.
Part I: Brewery Equipment starting consulting, proposal communication via email and call.
During this process, we confirm the specification and configuration of 1 head canning machine:
The main configurations mainly include:
Feeding table(rotary)
1 head canning line
Collection table
| Rotary Infeed Table | ||||
| Size:(W*L*H) | 0.6×0.6×0.98m | |||
| Weight: | 39KG | |||
| Packing Size:(L*W*H) | 0.7×0.7×1.15M | |||
| Gross Weight: | 60KG | |||
| Capacity: | adjustable speed | |||
| Power: | Singel Phase 110V-240VAC 50/60Hz is default | |||
| Power consumption: | 500W | |||
| Main Material: | AISI304, Aluminum Alloy and POM | |||
| 1 Head Canning Machine | ||||
| Size:(W*L*H) | 1.20x 0.73 x1.7M | |||
| Weight: | 133KG | |||
| Packing Size:(L*W*H) | 1.35x1.0x1.93M | |||
| Gross Weight: | 232KG | |||
| Capacity: | 500PCS/STATION|1 STATION | |||
| Power: | Singel Phase 110V-240VAC 50/60Hz is default | |||
| Power consumption: | 800W | |||
| Main Material: | AISI304, Aluminum Alloy and POM | |||
| Beer Source Requirement: | Temperature: 30.2 - 32F (-1 to 0C) Carbonation: 2.4 to 2.7 volumes CO2 (4.6 to 5.2 g/L CO2) Pressure：22psi（0.15MPa） Connection: 1.5" Tri-clamp | |||
| CO2 Regulator: | 58-65 psi（0.4MPa-0.45Mpa） from plant system connected to canning system with 10mm OD barbed fitting | |||
| Air Regulator: | 87-102 psi（0.6MPa-0.7Mpa） from plant system connected to canning system with 10mm OD barbed fitting | |||
| Time setting way: | Siemens PLC 200 smart and IEV3 Touch Screen | |||
| Seamer: | Cemented Carbide Panasonic Motor | |||
| Dissolved Oxygen: | ≤50ppb | |||
| Can type: | Flash Boy FBCS1-1 can be configured for nearly all standard can sizes! Change over between different can dimensions is a snap, requiring only a few simple tools and less than 30 minutes. | |||
| Rinse function: | 3S/pc（adjustable） | |||
| Spray function: | 2S/pc（adjustable） | |||
| Collection Table | ||||
| Size:(W*L*H) | 0.65×0.65×1.1m | |||
| Weight: | 40KG | |||
| Packing Size:(L*W*H) | 0.75×0.75×1.2m | |||
| Gross Weight: | 60KG | |||
| Capacity: | adjustable speed | |||
| Main Material: | AISI304, Aluminum Alloy and POM | |||

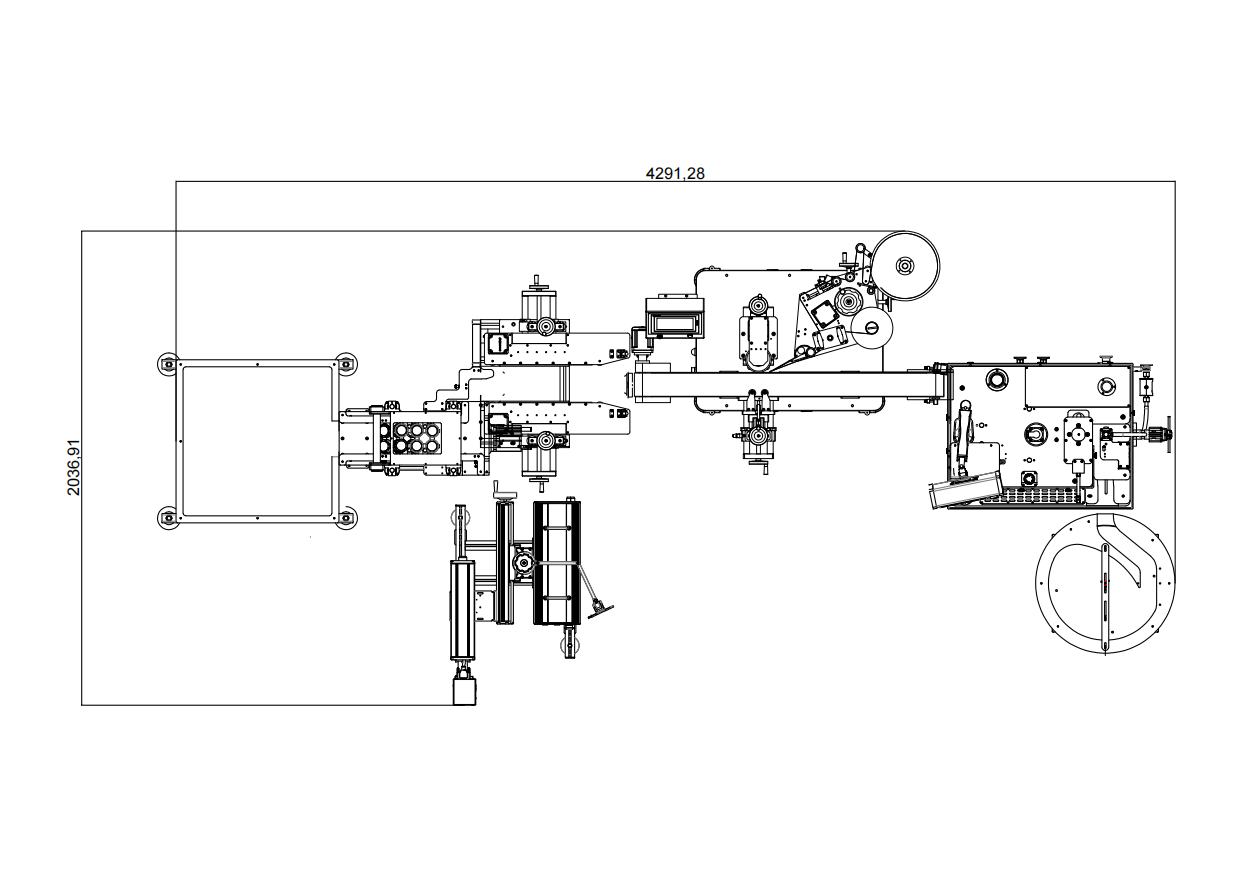

Part III: 1 head canning line floor plan design before manufacturing

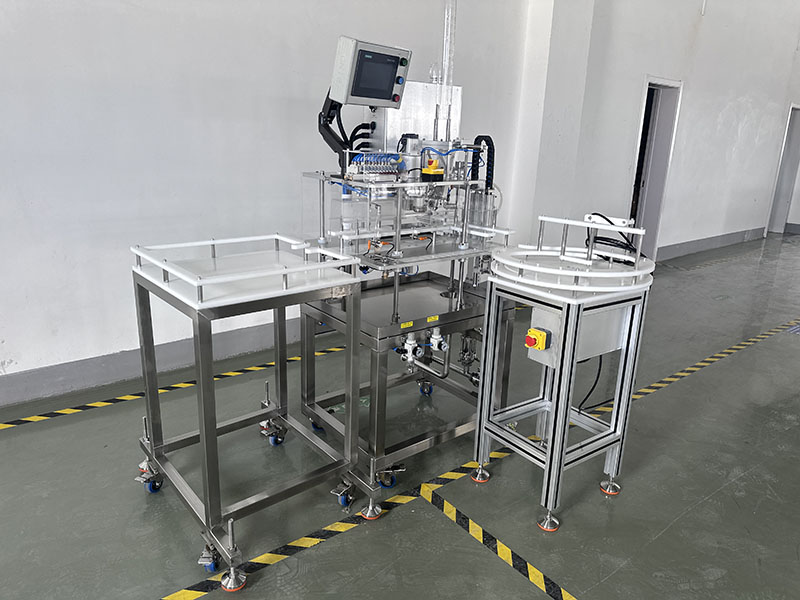

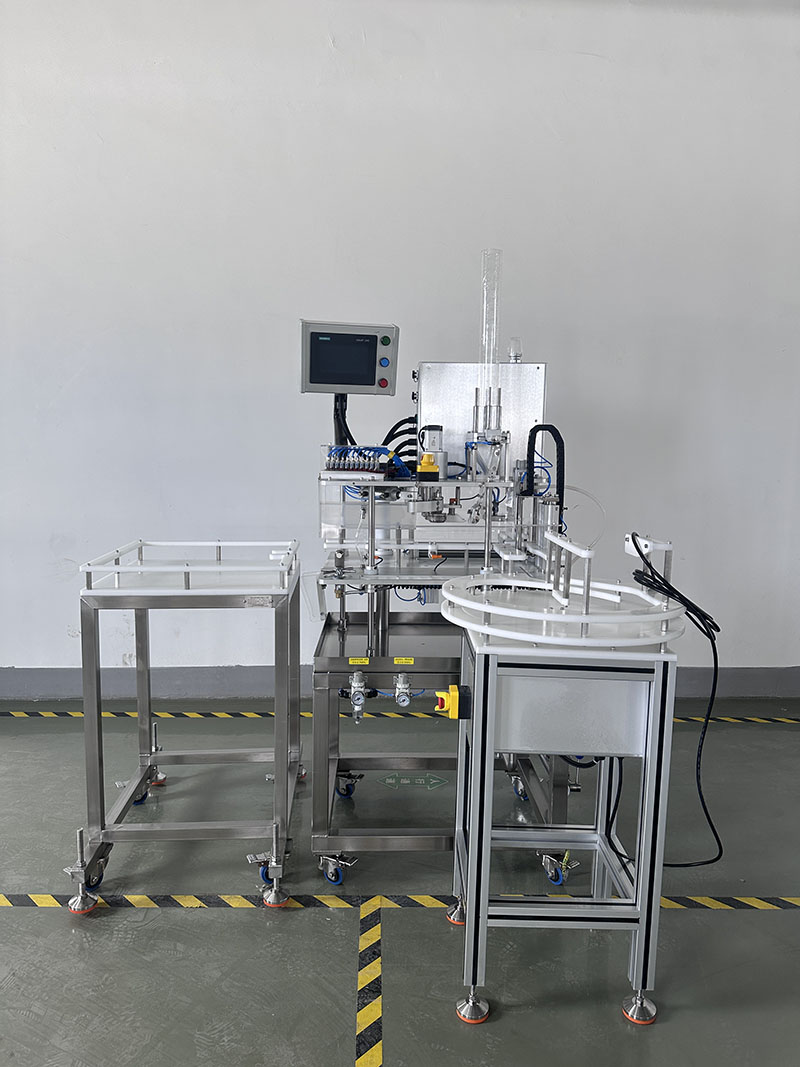

Part IV: Finish of 1 head canning machine

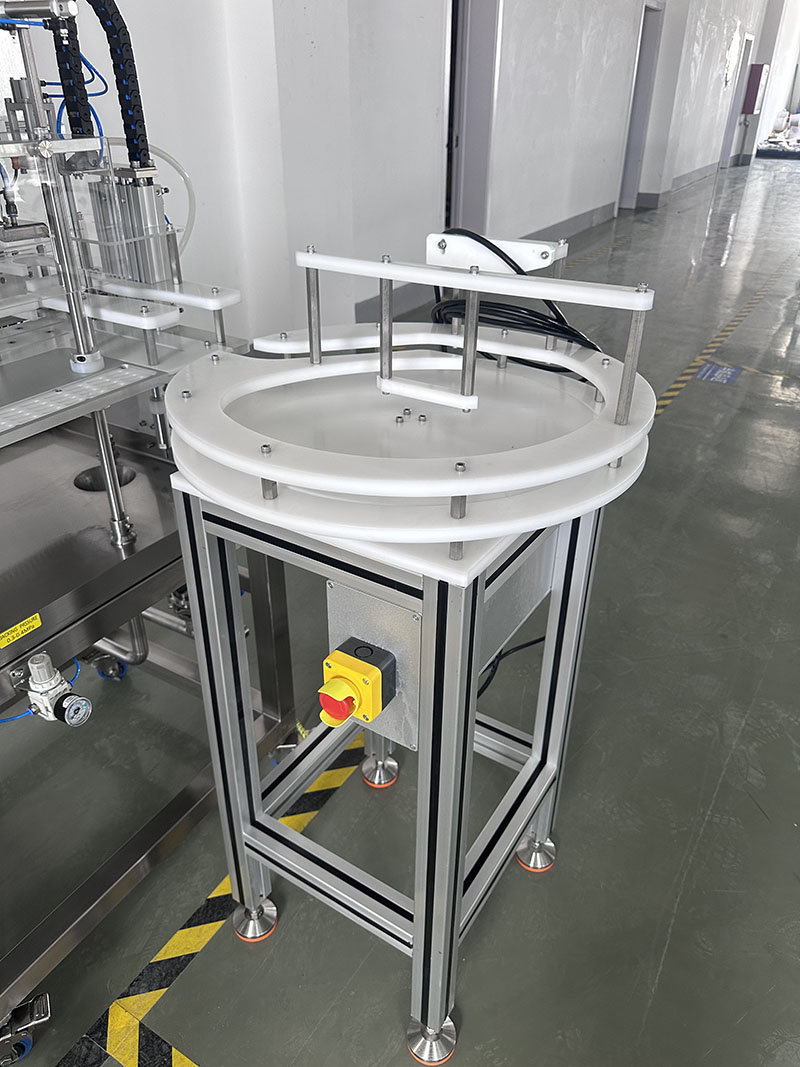

Infeed table

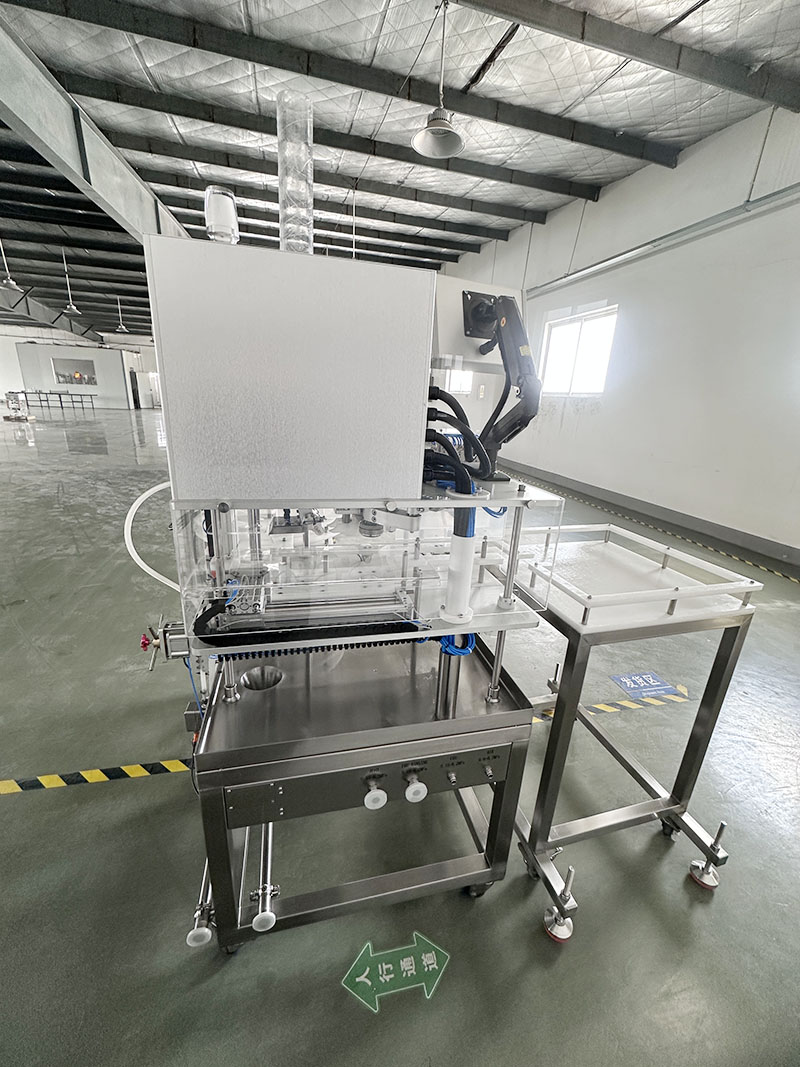

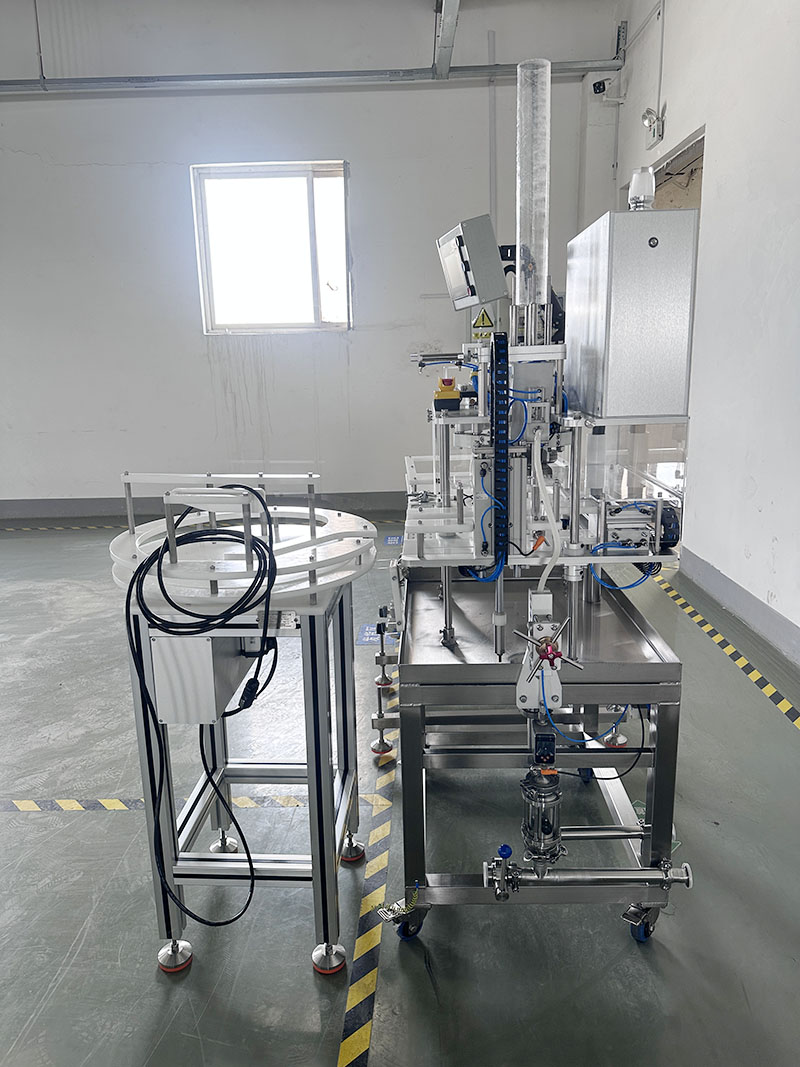

Canning machine
\

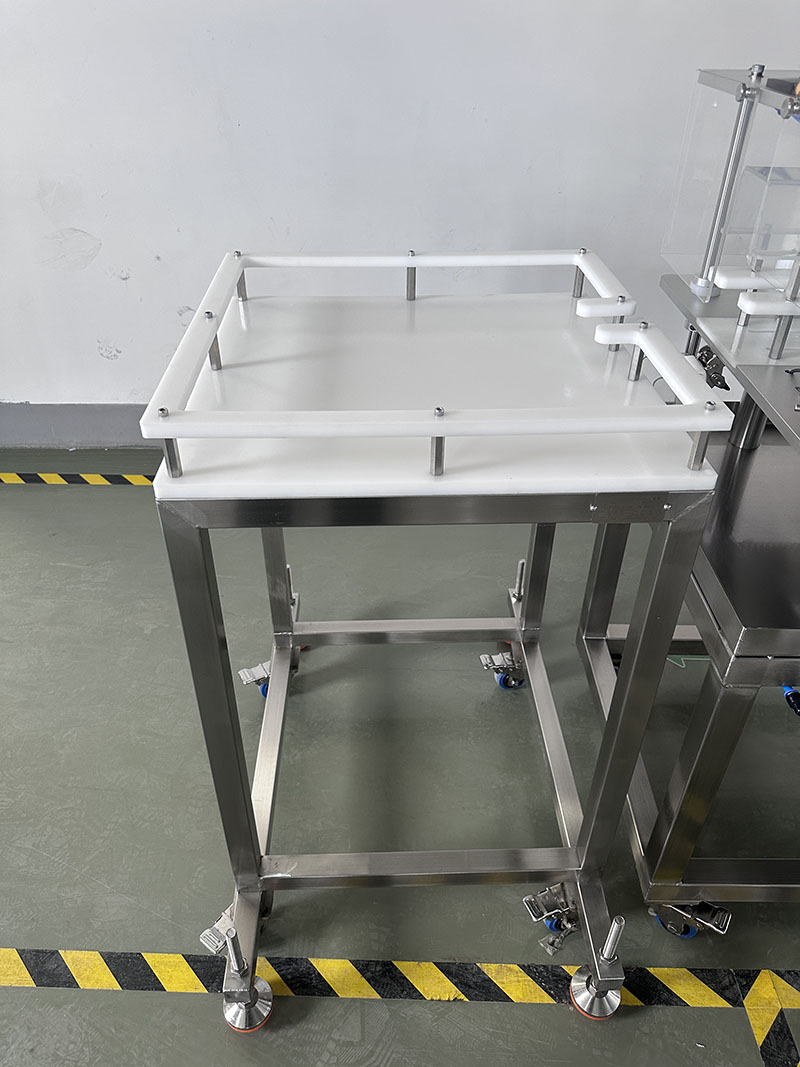

Collection table
Part V: Shipping of 1 heading canning system
If you also want to customize your canning machine, come and visit Brewman factory.
Thanks and welcome your inquiry.
