Brewman beer fermentation tanks can be individually temperature controlled through glycol jackets and are mostly equipped with accessories such as pressure gauge and relief valves(PRVR), CIP cleaning arm, Spunding valves, Carbonation stone, sanitary sample valve, manhole, Levels etc.

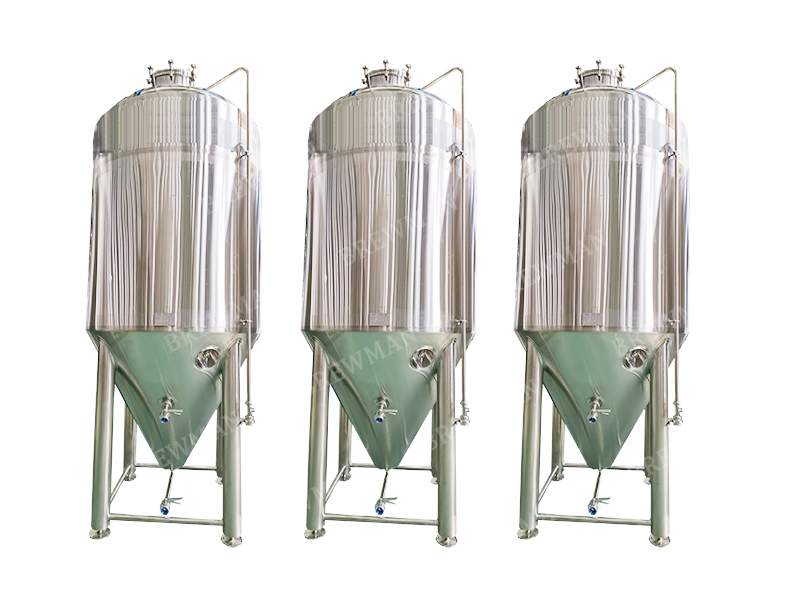

500l Brewery Fermentation Tank Price Beer Fermenter for Sale
500l fermentation tank Introduction:
Fermentation vessels(FV's) are also called fermenters.
Some brewers also call it CCT's (Cylindrical Conical Tanks) or primary fermentor.
And many breweries use fermentation tanks or unitanks as they are used
both for fermenting and lagering.
Fermenting is the process during which the yeast transforms the wort into beer.
Lagerings takes place after fermenting and is the time given to the beer to stabilize and age after fermenting.
Brewman beer fermentation tanks can be individually temperature controlled through glycol jackets.
And they are mostly equipped with accessories such as pressure gauge and relief valves(PRVR), CIP cleaning arm,
Spunding valves, Carbonation stone, sanitary sample valve, manhole, Levels etc.
500l fermenter Shipping:
.Plastic film wrapped and iron frame fixing for FCL(full container loading)
20’GP, 20’HQ, 40’GP, 40’HQ,45’GP,45’HQ,
.Wooden case package for LCL(less container loading) and flat shipping
500L conical fermenter Configuration:
Design pressure 45 psi (3bar)
Working pressure 30psi (2bar)
304 stainless steel, thickness 3mm
Fully welded,304 stainless steel, thickness 2mm
Interior and exterior finish
Acid washing to 0.6um
60 degree cone bottom, other angles can be specified during the design process
Beer rotating arm beer outlet, beer discharging port at the bottom
25% headspace, unless a different volume is requested
Top manway or side manway door
Dual zone in sidewall and cone dimple cooling jacket with glycol inlet and outlet
Polyurethane insulation thickness 80mm for cooling jacket on side and bottom
Non welding CIP arm and rotating 360 degree reach spray ball
Solenoid relief valve, pressure relief valve (saftyvalve) are standard
Temperature sensor well
Sanitary sample valve and port
All clamps and gaskets to attach all accessories
Tank complete with piping, fittings, sanitary valves and all parts.
4 stainless steel legs with leveling footpads
Carbonation por, Spunding valves and level
Ladder hooks is available
Dry hop ports and/or hop bag hooks in any fermenter of any size
