The basic construction is Mash/Lauter tank and Kettle/Whirlpool tank. Single batch or double batches hot water tank depends on the scale of brewpub. There are copper, stainless steel and copper appearance for optional.
Brewers make their beer attractive to consumers by unique brewing process and distinctive beer taste.
If desired, they can be placed directly in places of consumption of beer: restaurants, pub, bars, hotels,tourist and shopping centers.
Some brewpub place beer pub equipment behind a glass partition that allows visitors to observe the process of making beer.
This is an excellent design solution from A to Z, includes grain miller, brewhouse, brewing tank heating machine, Heat exchanger, fermentation tank, serving tank, cooling chiller, controller and CIP cleaning.
BME-20BBL
Brewman
8438400000
| Availability: | |
|---|---|
|
| |
Product Description

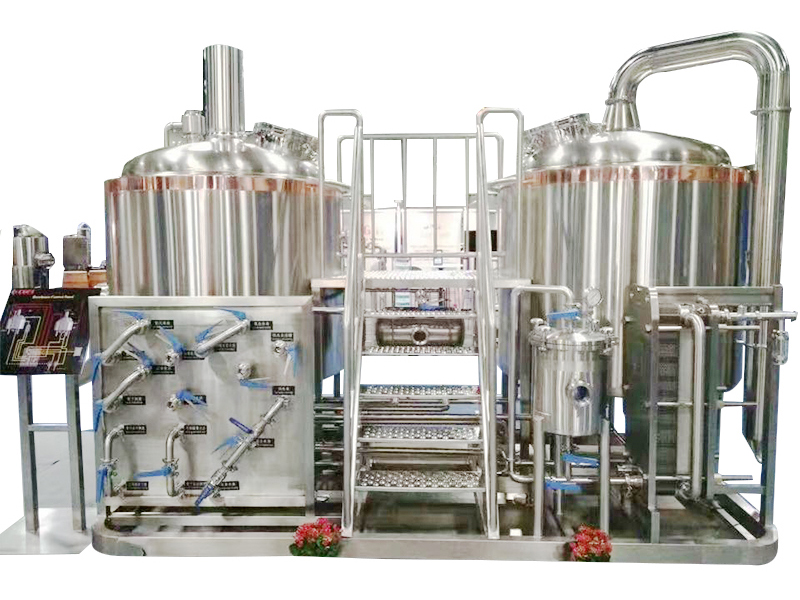

Hot Sale Steam Heating 20 bbl Brewhouse Cost
20 bbl brewhouse Introduction:
Hot Sale Steam Heating 20 bbl Brewhouse Cost
is widely in nano brewery, beer brewpubs and micro brewery system.
The basic construction is Mash/Lauter tank and Kettle/Whirlpool tank. Single batch or double batches hot water tank depends on the scale of brewpub. There are copper, stainless steel and copper appearance for optional.
Brewers make their beer attractive to consumers by unique brewing process and distinctive beer taste.
If desired, they can be placed directly in places of consumption of beer: restaurants, pub, bars, hotels,tourist and shopping centers.
Some brewpub place beer pub equipment behind a glass partition that allows visitors to observe the process of making beer.
This is an excellent design solution from A to Z, includes grain miller, brewhouse, brewing tank heating machine, Heat exchanger, fermentation tank, serving tank, cooling chiller, controller and CIP cleaning.
Work Process for 3 vessel 20 barrel brewhouse:
Normally 3 vessels 20 barrel brewhouse,
mash tun, lauter tun, kettle whirlpool tank
mash/lauter tun, kettle tank, whirlpool tank
mash/kettle tun, lauter tun, whirlpool tank
Click 3 vessel brewhouse to check more details about the three combination
The combination of "mash tun, lauter tun, kettle whirlpool tank" is most popular.
Below is the brewing process for it
Mashing is the process of combining the milled grain and hot water,
heating this mixture to different temperatures to achieve step mashing in a vessel called a "mash tun".
Then the wort will be lautered in a "lauter tun",
After lautering, the clear wessort will be transferred to Kettle/Whirlpool tun for wort boiling.
After 1-1.5 hour wort boiling, the wort will process whirlpooling for 30 mins,
the wort will be cooled immediately by heat exchanger and go to fermenter for fermentation.
20 bbl electric brewhouse Shipping
.Plastic film wrapped and iron frame fixing for FCL(full container loading)
20’GP, 20’HQ, 40’GP, 40’HQ,45’GP,45’HQ,
.Wooden case package for LCL(less container loading) and flat shipping
20bbl brewhouse heating way:
Heating type | steam | The steam heating would require a boiler/generator. It heat evenly and fast, also easy to control temperature and not scorch the pot. |
electric | The electric heating behaves well for the volume under 500L, saving the investment on the boiler/burner, if there is no condition to use the boiler/burner or it is more economical by using electricity. | |
direct fire | The burner and agitator are equipped with kettle. If you adopt decoction mashing way, the wort is easier to scorch. If so, the steam heating is more suitable. |
